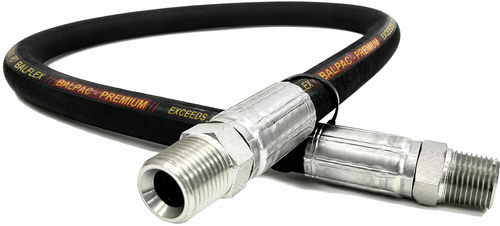

Custom Hydraulic Hose Assembly
Build Your Hose. Built Your Way.
Select a brand, configure the assembly, and compare pricing without rebuilding your selections.
How it works: choose a brand, hose, ends, optional protection, and length. Prices update in real time. Tip: review the Length & Fitting Phasing guide below when using two angled fittings.
1
Choose Hose Brand
Switch brands anytime. Compatible selections, length, quantity, protection, and notes stay in place.
2
3 End 1
4 End 2
5
End 1
Pick End 1
Hose
Pick Hose
Protection
Optional
End 2
Pick End 2
6
0.00 ft
Default preview: 12 inches • Allowed: 6–1200 inches
7
Maximum 99 assemblies
8
300 characters left
Each $—
Line Total $—
Included assembly service: projectile cleaning is performed on every completed hose.
? Secure checkout • Custom built to order

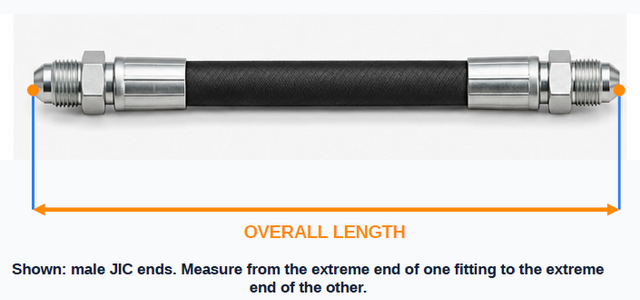

- Straight × Straight: measure from the extreme end of one fitting to the extreme end of the other.

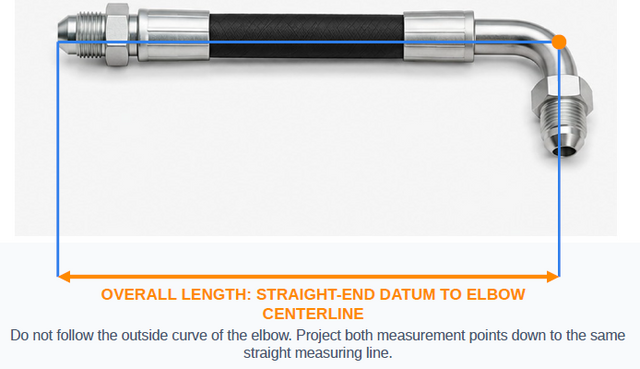

- Straight × Angle: project both measurement points to the same straight measuring line, then measure from the straight-end datum to the elbow centerline.
- Do not follow the outside curve of an elbow or include protective caps, dust plugs, or bend restrictors.
- Two angled fittings: include the required fitting clocking/phasing in Order Notes.
- Length tolerance is typically ±1% or ±1/4″, whichever is greater.
